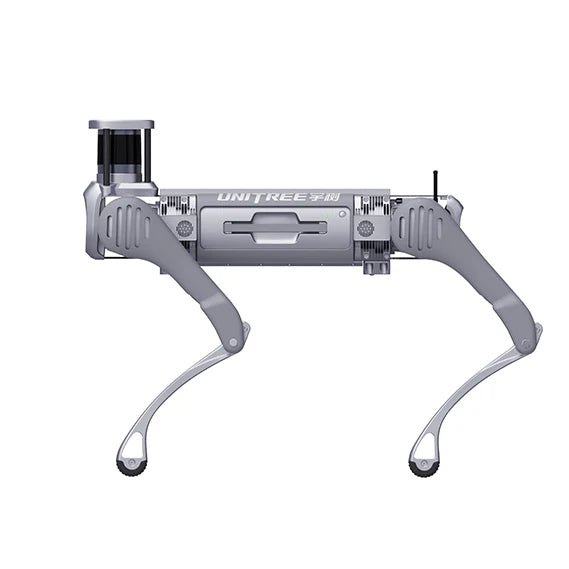

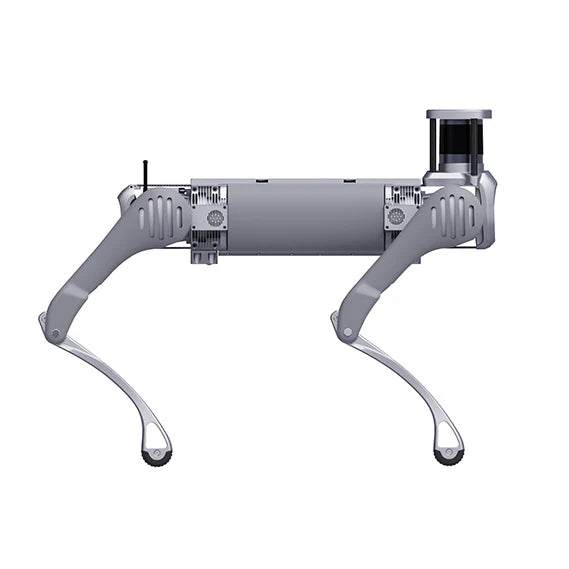

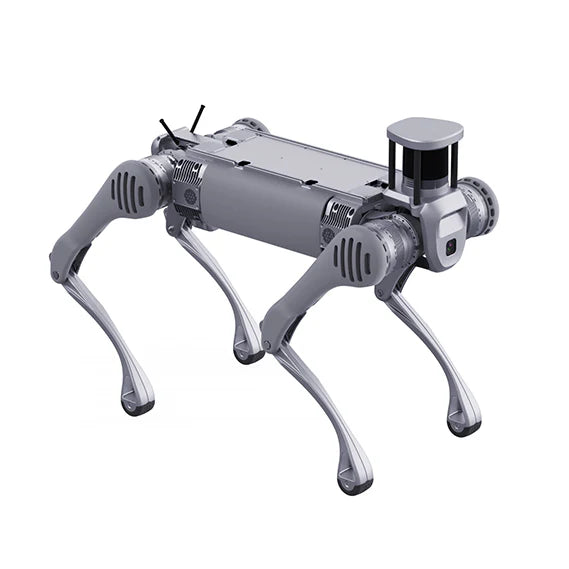

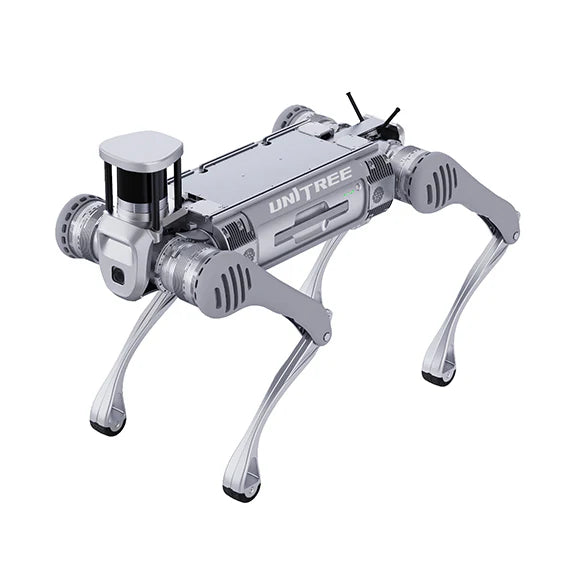

Unitree B2 Industrial Quadruped Robot Dog
World's Fastest & Most Advanced Heavy-Duty Industrial Robot Dog
The Unitree B2 represents a revolutionary breakthrough in industrial robotics, delivering 2-3x superior performance compared to all existing quadruped robots worldwide. This cutting-edge industrial robot dog combines unmatched speed, exceptional load capacity, advanced AI intelligence, and military-grade durability to transform automation, inspection, emergency response, and research operations across industries.
Revolutionary Performance Specifications
| Specification | Unitree B2 Performance | Industry Advantage |
|---|---|---|
| Maximum Running Speed | 6+ m/s (21.6 km/h) | World's fastest industrial quadruped |
| Joint Torque Output | 360 N.m per joint | 170% increase over previous generation |
| Standing Load Capacity | 120kg maximum | Heaviest payload in quadruped category |
| Continuous Walking Load | 40kg+ sustained capacity | 100% increase in moving payload |
| Endurance (Unloaded) | 5+ hours / 20+ km range | 200% endurance improvement |
| Endurance (20kg Load) | 4+ hours / 15+ km range | Extended operational capability |
| Obstacle Crossing | 40cm maximum height | Superior terrain navigation |
| Climbing Capability | 45° maximum angle | Steep incline mastery |
| Maximum Jump Distance | 1.6+ meters | Exceptional mobility range |
| Environmental Protection | IP67 rating | Dust & waterproof construction |
| Operating Temperature | -20°C to 55°C | Extreme environment capability |
| Battery System | 45Ah (2,250Wh) 58V | Ultra-high capacity power |
| Total Weight | 60kg (including battery) | Optimized power-to-weight ratio |
| Standing Dimensions | 1098×450×645mm | Compact industrial form factor |
| Prone Dimensions | 880×460×330mm | Space-efficient storage mode |
Advanced Technology & Intelligence Systems
Multi-Modal Locomotion Technology
Revolutionary dual-form locomotion system enables seamless switching between legged mode for complex terrain navigation and wheeled mode (B2-W variant) for high-speed flat surface travel up to 20 km/h. This innovative design provides unmatched versatility for diverse operational requirements.
AI-Powered Autonomous Intelligence
Equipped with Intel Core i5 (platform function), Intel Core i7 (user development), and optional NVIDIA Jetson Orin NX processors for advanced AI capabilities including:
- Real-time obstacle detection and avoidance
- Autonomous path planning and navigation
- Dynamic gait adaptation for terrain optimization
- Machine learning for continuous performance improvement
- Computer vision for object recognition and tracking
Comprehensive Sensor Array
Advanced multi-sensor perception system provides 360° environmental awareness:

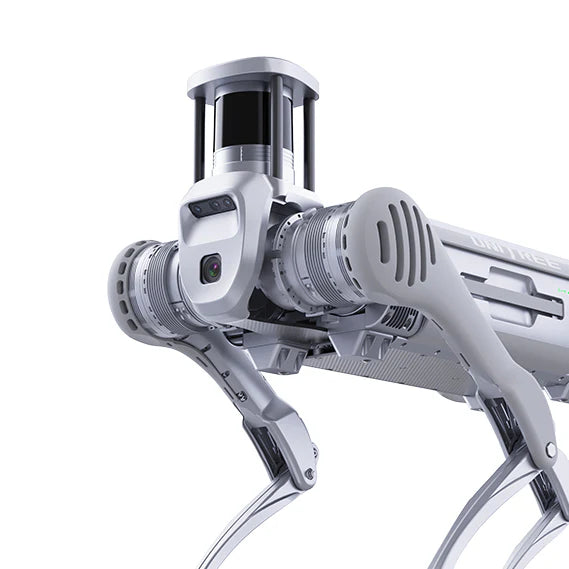

- 32-wire Automotive-Grade 3D LiDAR - Precision mapping and navigation
- Depth Cameras (×2) - Accurate distance measurement and 3D reconstruction
- High-Resolution Optical Cameras (×2) - Visual inspection and monitoring
- Infrared Scanning Capability - Thermal imaging and night vision
- IMU and Force Sensors - Balance and stability control
Modular Power & Charging System
Hot-swappable 45Ah battery system with autonomous charging solutions enables continuous 24/7 operation. Quick-change battery design minimizes downtime for mission-critical applications.
Unitree B2 vs Competition Comparison
| Performance Metric | Unitree B2 | Boston Dynamics Spot | B2 Advantage |
|---|---|---|---|
| Maximum Speed | 6+ m/s | 1.6 m/s | 275% faster |
| Payload Capacity | 40kg continuous | 14kg maximum | 185% higher capacity |
| Battery Life | 5+ hours | 90 minutes | 233% longer endurance |
| Climbing Angle | 45° | 30° | 50% steeper capability |
| Environmental Protection | IP67 | IP54 | Superior dust/water resistance |
| Temperature Range | -20°C to 55°C | -20°C to 45°C | Extended high-temp operation |
| Cost Effectiveness | ~50% of Spot price | Premium pricing | Superior value proposition |
Industrial Applications & Use Cases
Industrial Inspection & Maintenance
- Power Grid Infrastructure - Autonomous inspection of power lines, transformers, substations, and electrical equipment with thermal imaging capabilities
- Oil & Gas Pipeline Monitoring - Leak detection, structural integrity assessment, and safety compliance verification across vast pipeline networks
- Manufacturing Quality Control - Automated equipment monitoring, predictive maintenance, and production line inspection in industrial facilities
- Infrastructure Assessment - Bridge inspection, tunnel monitoring, and structural health evaluation for critical infrastructure
- Chemical Plant Safety - Hazardous area monitoring, gas leak detection, and equipment status verification in chemical processing facilities
Emergency Response & Public Safety
- Search & Rescue Operations - Disaster response, victim location, and evacuation assistance in collapsed buildings, natural disasters, and hazardous environments
- Fire Department Support - Structural assessment in burning buildings, smoke-filled environment navigation, and firefighter safety enhancement
- HAZMAT Response - Chemical spill assessment, radiation monitoring, and dangerous material handling in contaminated areas
- Law Enforcement - Bomb disposal support, dangerous suspect apprehension, and tactical reconnaissance in high-risk situations
- Border & Perimeter Security - Autonomous patrol, intrusion detection, and surveillance in sensitive areas
Logistics & Material Handling
- Warehouse Automation - Automated inventory management, material transport, and order fulfillment in distribution centers
- Construction Site Support - Tool and material delivery across rough terrain, progress monitoring, and safety inspection
- Mining Operations - Equipment transport, site surveying, and safety monitoring in underground and surface mining environments
- Port & Marine Logistics - Container inspection, cargo monitoring, and security patrol in maritime facilities
- Agricultural Automation - Crop monitoring, precision farming support, and livestock management assistance
Research & Development Applications
- Robotics Research - Advanced locomotion studies, AI algorithm development, and human-robot interaction research
- Academic Education - STEM learning platform, engineering curriculum support, and robotics competition participation
- Military & Defense - Tactical reconnaissance, equipment transport, and battlefield support in military applications
- Space & Extreme Environment Testing - Mars rover simulation, extreme climate research, and planetary exploration preparation
Advanced Connectivity & Integration
Computing Architecture
- Intel Core i5 Processor - Platform function and system control
- Intel Core i7 Processors (×3) - User development and application processing
- NVIDIA Jetson Orin NX - AI acceleration and machine learning tasks
- Modular Computing - Up to 3 processing units maximum configuration
Communication & Connectivity
- 1000M Ethernet Ports (×4) - High-speed wired network connectivity
- USB 3.0 Ports (×4) - Peripheral device connection and data transfer
- 4G Wireless Communication - Remote operation and data transmission
- GNSS Positioning - Precise location tracking and navigation
- Over-the-Horizon Communication - Extended range communication capability
Power Distribution System
- 12V Output Ports (×4) - Standard voltage for sensors and accessories
- 24V Output Ports (×4) - High-power device support
- 5V Output Port (×1) - Low-power electronics and USB devices
- Direct Battery Connection (×1) - Maximum power delivery for heavy equipment
Available Product Configurations
Unitree B2 Standard
Core Industrial Configuration - Complete legged locomotion system with standard sensor array, Intel Core processing architecture, 45Ah battery system, and IP67 environmental protection for general industrial applications.
Unitree B2-C32
Enhanced LiDAR Configuration - Features premium 32-channel automotive-grade LiDAR for superior mapping precision, enhanced obstacle detection, professional inspection capabilities, and advanced research applications requiring high-accuracy 3D sensing.
Unitree B2-W Wheeled Hybrid
Dual-Mode Locomotion System - Combines legged mobility with wheeled efficiency, achieving up to 20 km/h wheel speeds for extended range coverage, energy-efficient transportation, and optimal performance in large area surveillance.
Competitive Advantages & Value Proposition
Unmatched Performance Leadership
Delivers 2-3x superior performance compared to competing quadruped robots in critical metrics including speed, payload capacity, endurance, and environmental tolerance, establishing the B2 as the definitive industrial robotics solution.
Military-Grade Durability
IP67 protection rating ensures reliable operation in extreme conditions including dust storms, heavy rain, snow, and temperature extremes from -20°C to 55°C, providing consistent performance where other robots fail.
Advanced AI & Automation
Sophisticated AI-driven control system enables autonomous decision-making, real-time obstacle avoidance, dynamic gait adaptation, and continuous learning for optimized performance in complex environments.
Exceptional Cost-Effectiveness
Delivers premium industrial robotics capabilities at approximately 50% the cost of comparable systems, providing superior return on investment and making advanced robotics accessible to broader markets.
Future-Ready Architecture
Open SDK with C++ and Python programming support, modular hardware design, and continuous software updates ensure long-term investment protection and adaptability to evolving operational requirements.
Return on Investment Benefits
Operational Efficiency Gains
24/7 autonomous operation capability eliminates human labor costs for routine inspection and monitoring tasks, reducing operational expenses by up to 75% while improving consistency and reliability.
Safety Enhancement & Risk Reduction
Eliminates human exposure to hazardous environments including toxic gases, extreme temperatures, radiation, and structural instability, reducing workplace accidents and associated liability costs by 90%+.
Data Quality & Decision Making
Consistent, repeatable data collection with millimeter-precision positioning, high-resolution imaging, and multi-sensor fusion improves decision-making accuracy and enables predictive maintenance strategies.
Maintenance Cost Optimization
Advanced predictive maintenance capabilities and early fault detection prevent costly equipment failures, extend asset lifecycles, and optimize maintenance scheduling for maximum operational efficiency.
Real-World Case Studies & Success Stories
Power Grid Inspection - 300% Efficiency Improvement
Major utility company deployed Unitree B2 robots for autonomous power line inspection, achieving 300% faster coverage compared to manual inspection while eliminating worker exposure to high-voltage hazards and reducing inspection costs by 65%.
Oil Refinery Safety Monitoring - Zero Incident Record
International oil refinery implemented B2 robots for continuous safety monitoring in hazardous areas, achieving zero safety incidents over 18 months of operation while detecting 15 potential equipment failures before critical damage occurred.
Emergency Response - Life-Saving Search Operations
Fire departments report successful victim location in smoke-filled buildings using B2 thermal imaging capabilities, with robots navigating through debris and extreme heat conditions where human rescuers cannot safely operate.
Mining Operation - 24/7 Autonomous Surveillance
Underground mining facility achieved continuous safety monitoring with B2 robots operating in dust-filled tunnels, detecting structural instabilities and gas leaks 48 hours faster than traditional inspection methods.
Technical Support & Service
Comprehensive Warranty Coverage
- Hardware Warranty - Complete component protection and replacement guarantee
- Software Support - Continuous updates and feature enhancements
- Technical Assistance - 24/7 global support for mission-critical applications
Training & Integration Services
- Operator Training Programs - Comprehensive certification for safe and effective operation
- Custom Integration Support - Tailored deployment for specific operational requirements
- Ongoing Consultation - Continuous optimization and performance enhancement
Global Service Network
- Local Technical Support - Regional service centers for rapid response
- Spare Parts Availability - Guaranteed component availability for minimal downtime
- Field Service Support - On-site technical assistance for complex deployments
Transform Your Operations with Unitree B2
The Unitree B2 Industrial Quadruped Robot represents the pinnacle of industrial robotics evolution, combining revolutionary performance capabilities, advanced AI intelligence, military-grade durability, and exceptional value proposition. Whether transforming inspection processes, enhancing workplace safety, revolutionizing emergency response, or pioneering cutting-edge research, the B2 delivers the superior capabilities needed to maintain competitive advantage in rapidly evolving industries.
Ready to revolutionize your industrial operations? Contact our robotics specialists today to discuss custom configurations, integration support, volume pricing options, and deployment strategies tailored to your specific operational requirements.
Experience the future of industrial automation with the world's most advanced quadruped robot.
